LR10M Low speed Large capacity Refrigerated centrifuge

  • Product name:LR10M Low speed Large capacity Refrigerated centrifuge
    Product model:LR10M
    Maximum speed:10000r/min
    Maximum capacity:6*1000ml
    Product number:
    Product brand:Herexi
    Product weight:280kg
  • product details


LR10M Low speed Large-capacity Refrigerated centrifuge

Product Name:LR10M Low  speed Large capacity Refrigerated centrifuge

Max RCF : 15093xg

Max Speed(r/min): 10000

PIN:LR10M
Brand:Herexi
Product unit: set
Weight:280Kg


Low-Speed Larger-Capacity Refrigerated centrifuge
Widely used for blood bank
Product Details


larger capacity centrifuge




Features:
PLC and touch screen (in line with EU CE electrical standards), with control panel and high torque AC variable frequency motor, for stable operation and low noise, providing a comfortable laboratory environment.

Variable frequency drive system and automatic control system to ensure steady and reliable operation.

Wide temperature control range: -20 ° C +40°C, can be set during the operation of the centrifuge; with pre-cooling function, it can quickly cool down to the set temperature degree; with standby cooling function, .

Maximum capacity 6×1000ml.

It has various early warning functions such as over-speed, over temperature, unbalance, under pressure and overpressure, three-stage damping and shock absorption, which makes the motor run safely and reliably, and achieve excellent centrifugal effect.

304 stainless steel centrifugal chamber and whole-steel casing, one-piece stamped steel front face and three-layer steel
protective cover to ensure the safety of workers and laboratories.

TFT-LCD true color touch screen, can display setting parameters and operating parameters at the same time, the operation interface is simple and easy to use,can display the speed rise curve, centrifugal integral curve, temperature curve. the operation menu can provide multi- language (Chinese, English).

Can store 16 sets of user-defined programs (Can be customized according to demand).

With CFDA & CFDA production qualification, ISO 9001, ISO 13485 and CE certification.

Model

LR10M

Max Capacity

6×1000ml

Max Speed(r/min)

10000

Max RCF(×g)

15093xg

Speed precision

±50r/min

motor

AC Motor

Refrigeration system

Imported fluoride-free compressor and control valve(R404a)

Control way

PC control

Operation pro grame

16

Temp.control range

-20℃~+40℃

Temp.precision

±1℃

Timer range

0-99h59min

Total power

4.0kw

Power

AC220 V/50 Hz 30A

Noise

<65 dB(A)

Dimension

(L×W×H)

840×730×950 mm

weight

280kg





LR10M


Model



capacity


Speed

RCF

Angle rotor

6X250ml

10000

15093

Angle rotor

6X300ml

10000

15875

Angle rotor

4*1000ml

4000

4050


Angle rotor


6X500ml

8000

11377

Angle rotor

6X1000ml(beckman bottle)

7000

11011


Swing rotor


4X1000ml

4000

4050

Swing rotor

6X1000ml

4200

5167

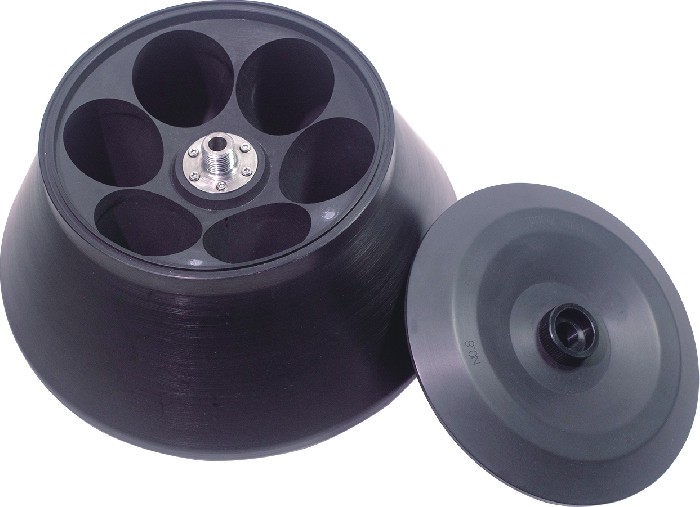

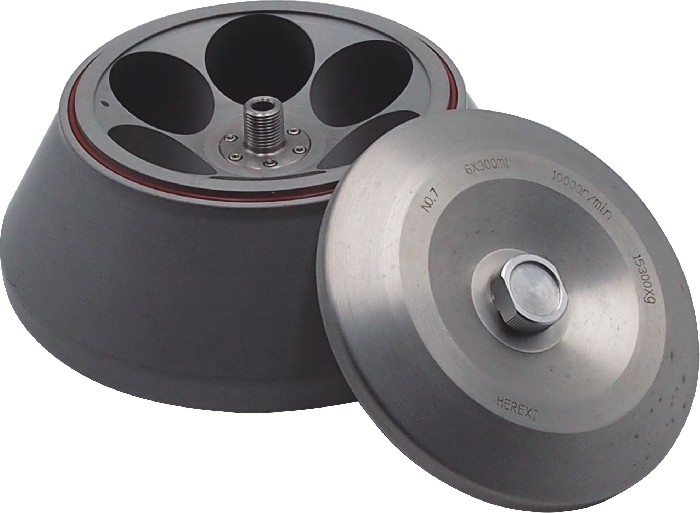

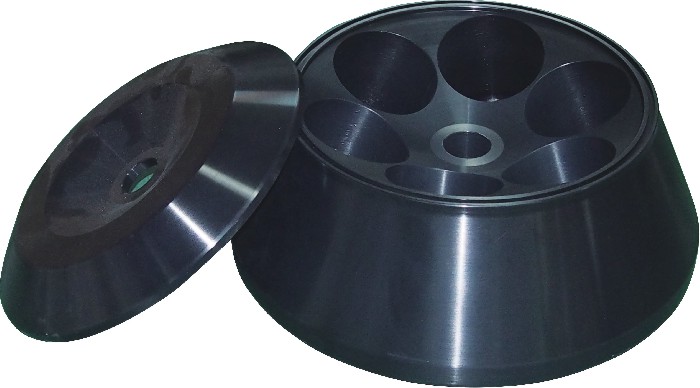

4*1000ml swing rotor6*300ml angle rotor 6*500ml angle rotor 6*1000ml swing rotor 6*1000ml beckman bottle angle rotor
